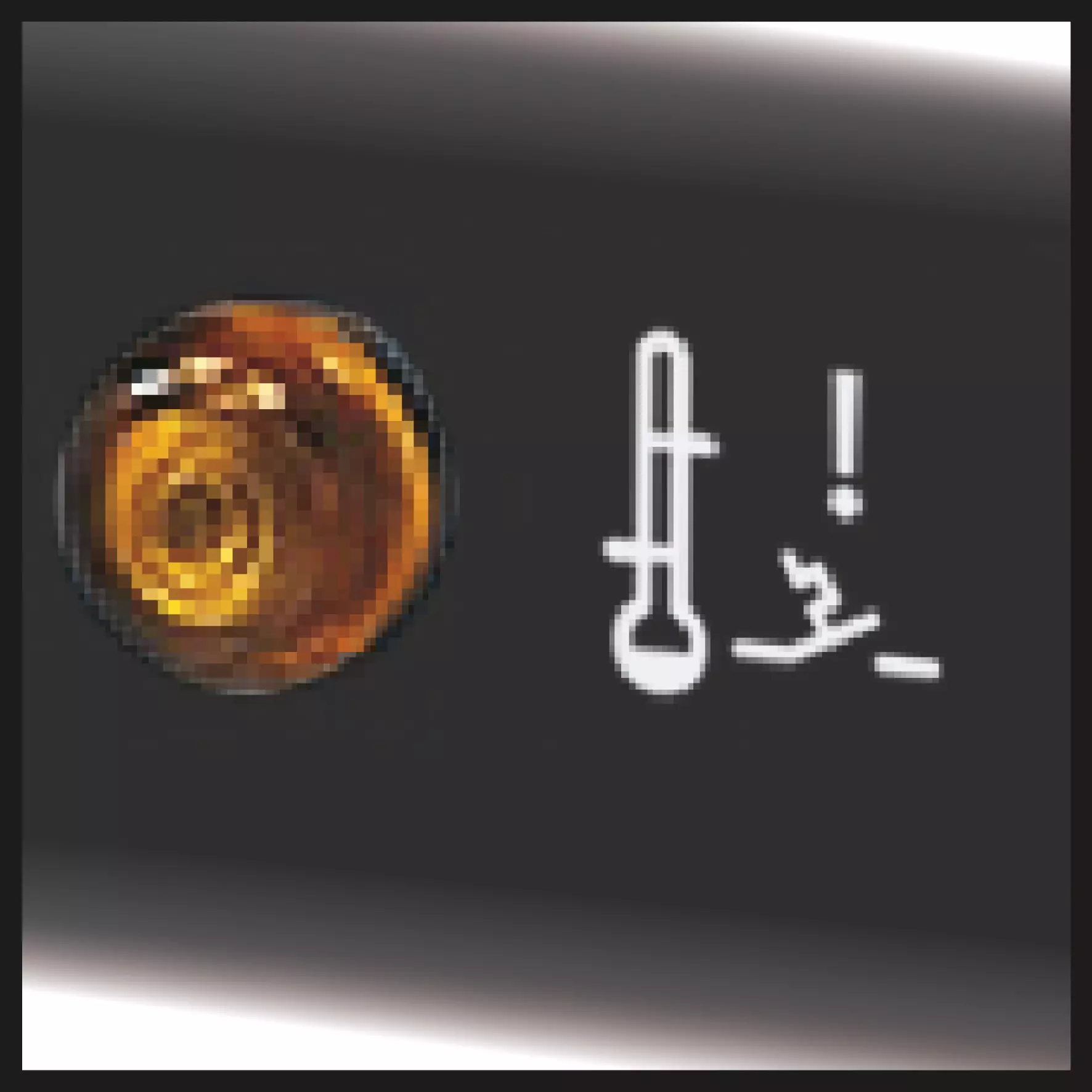

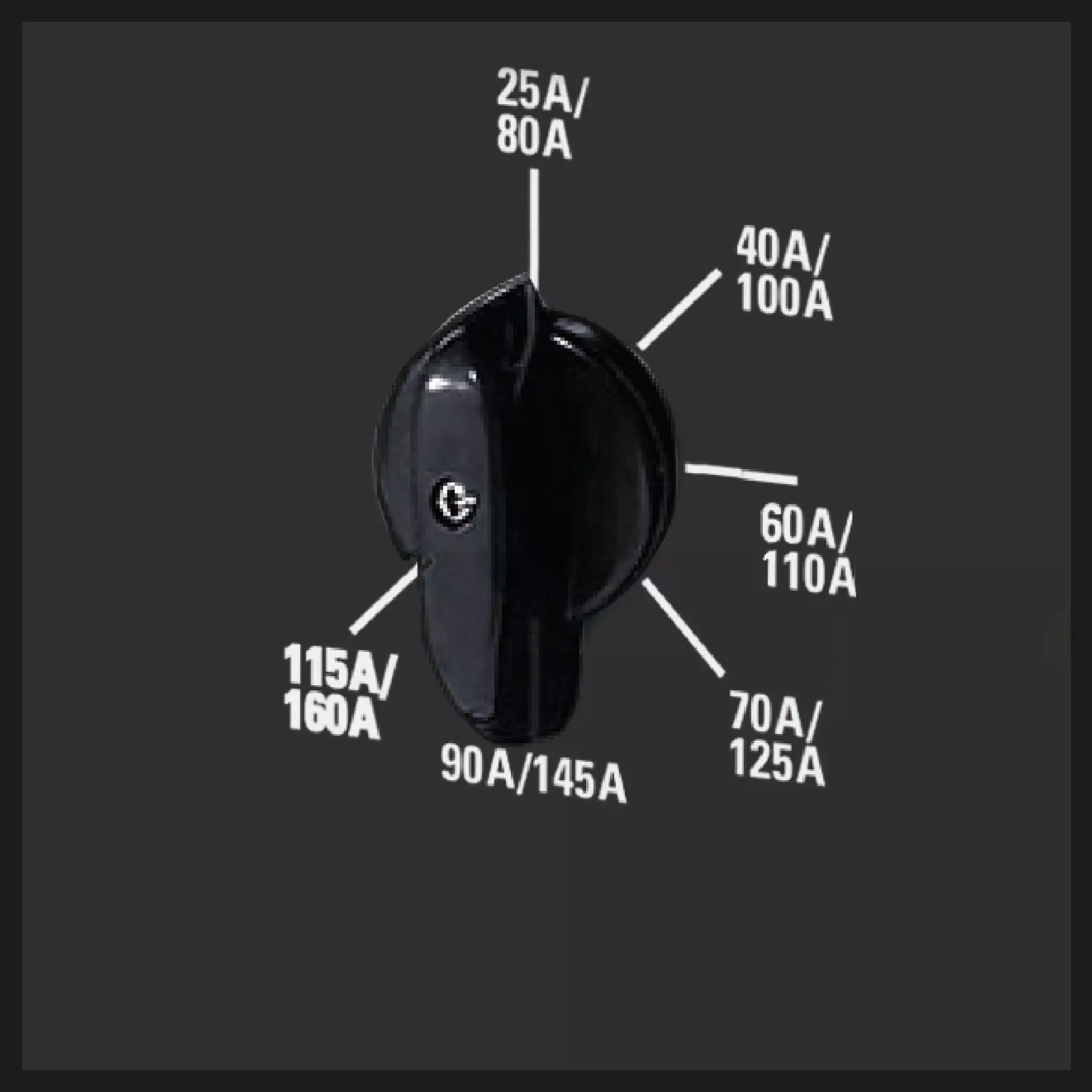

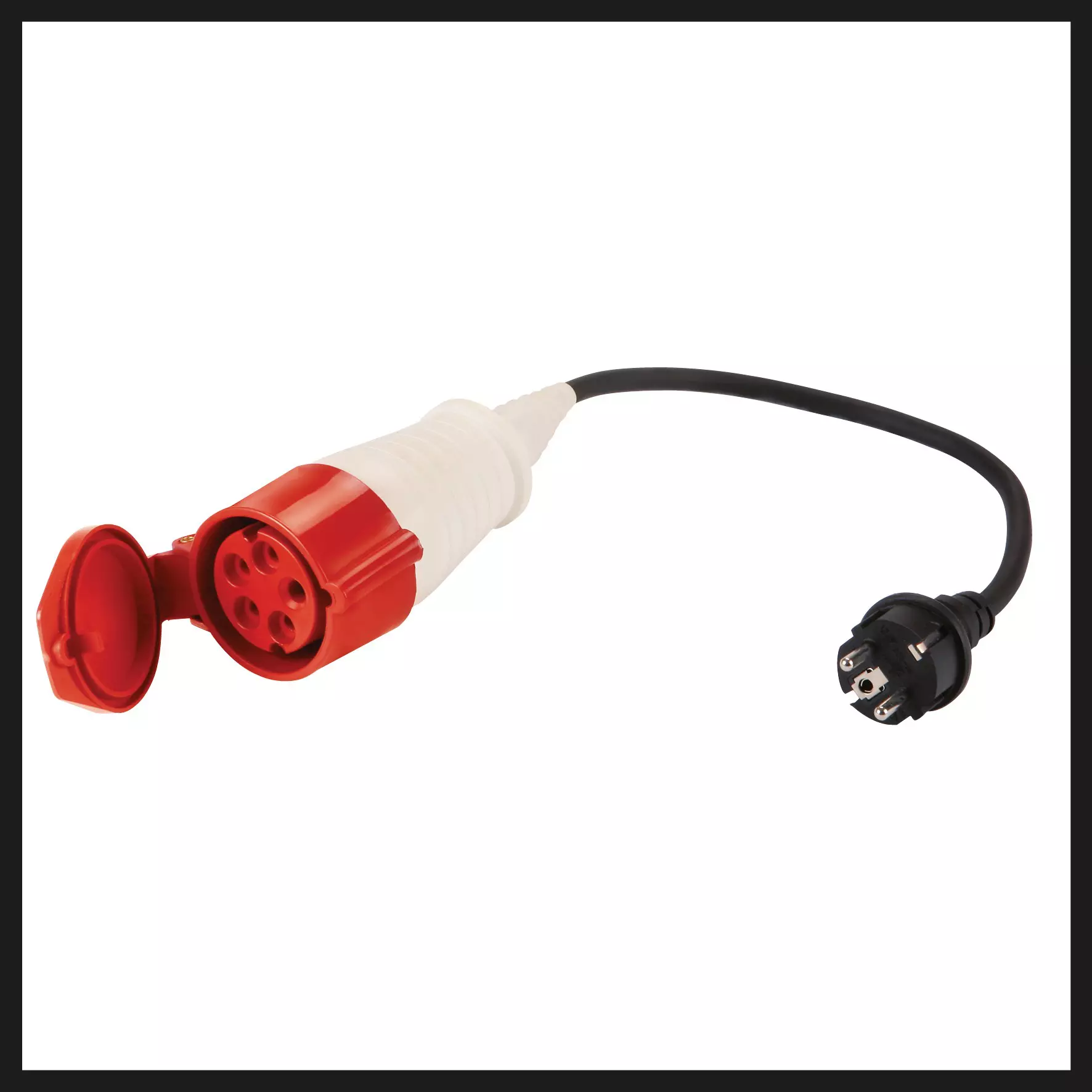

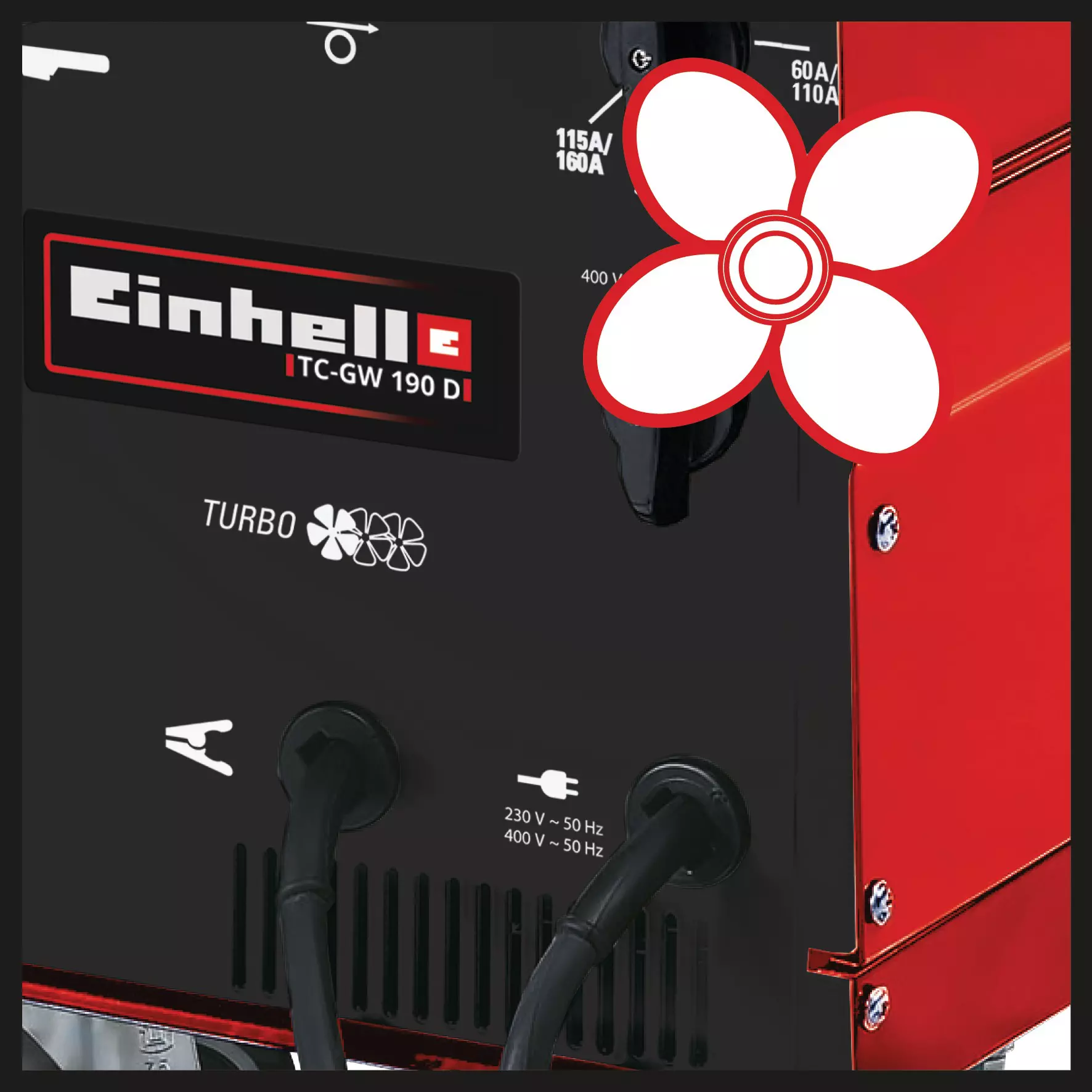

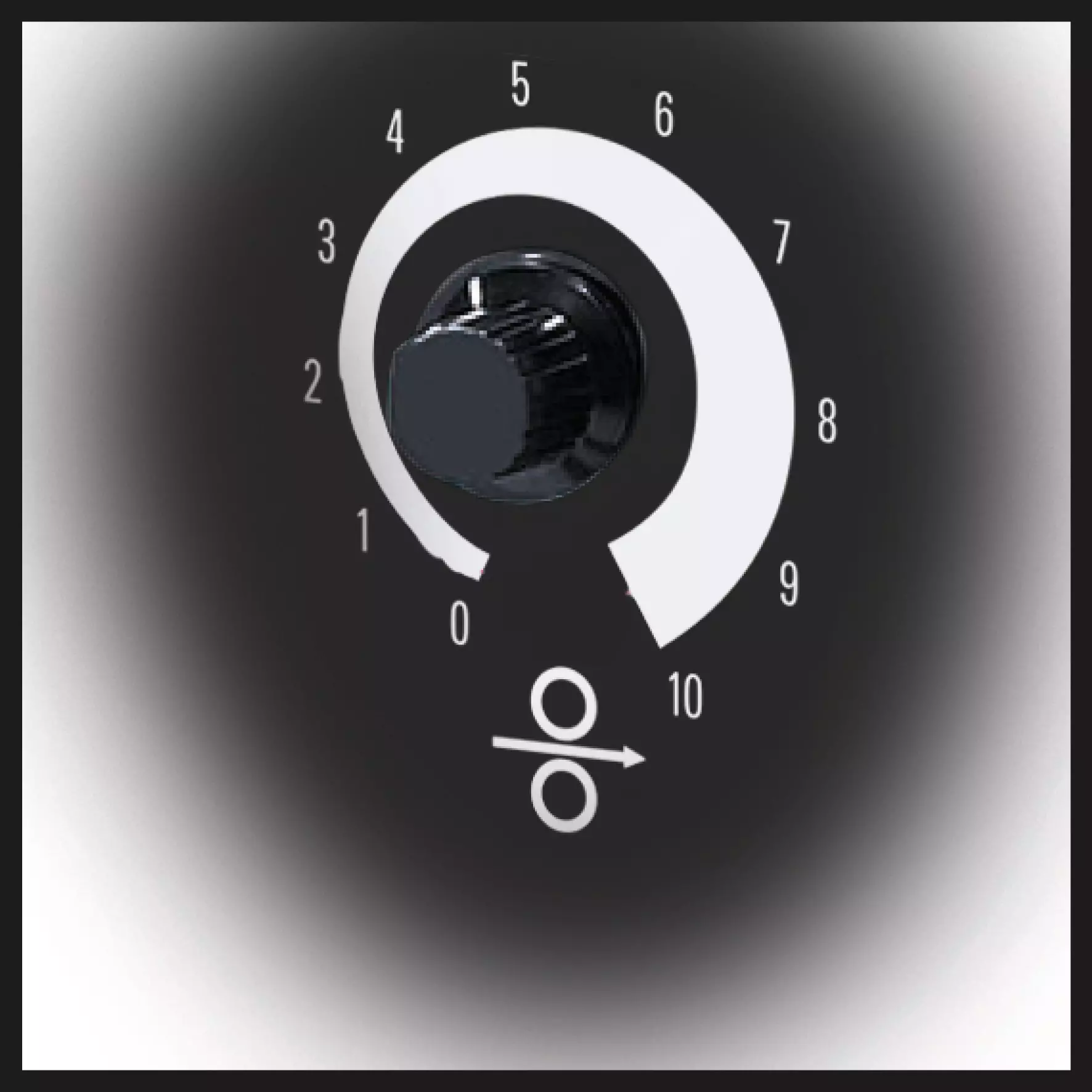

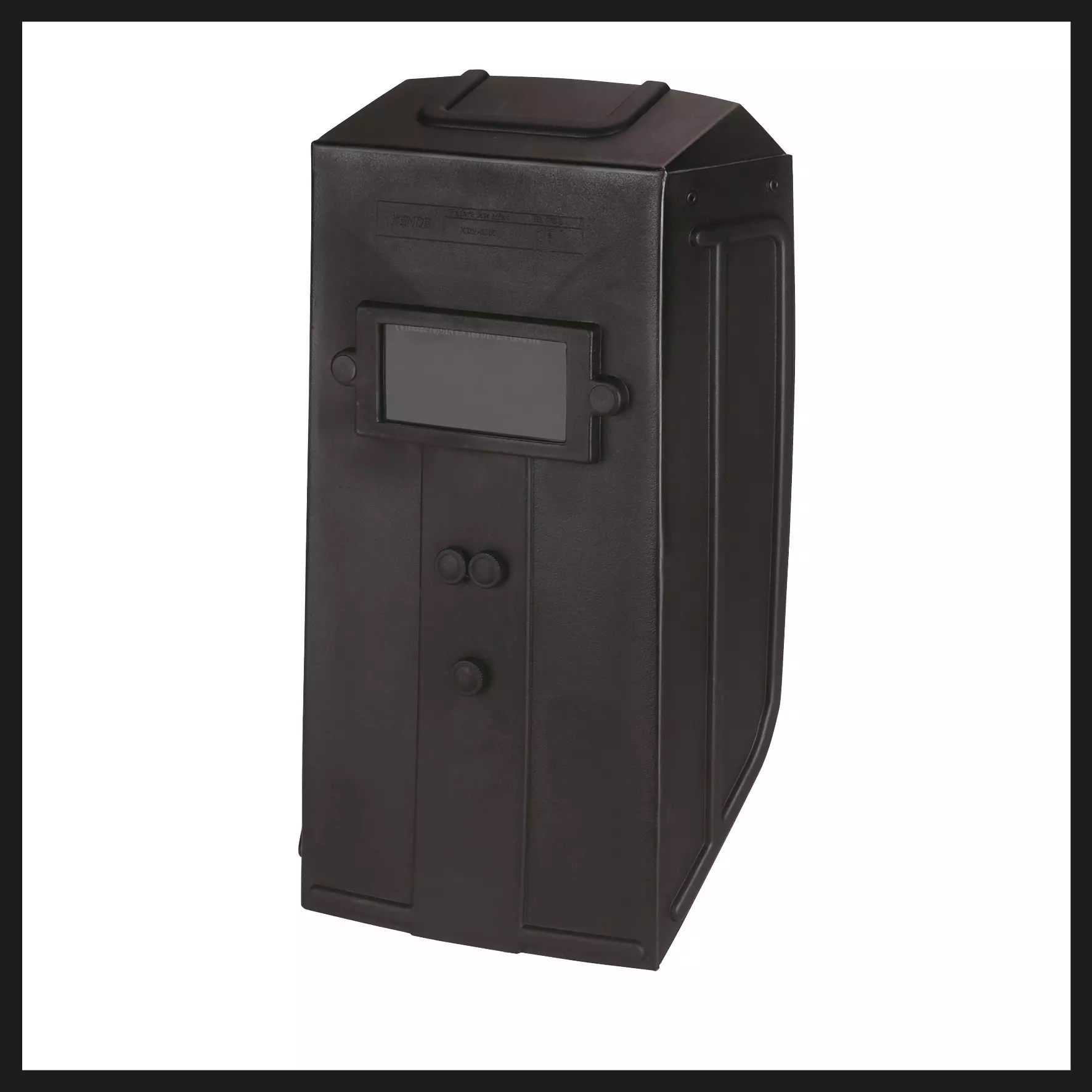

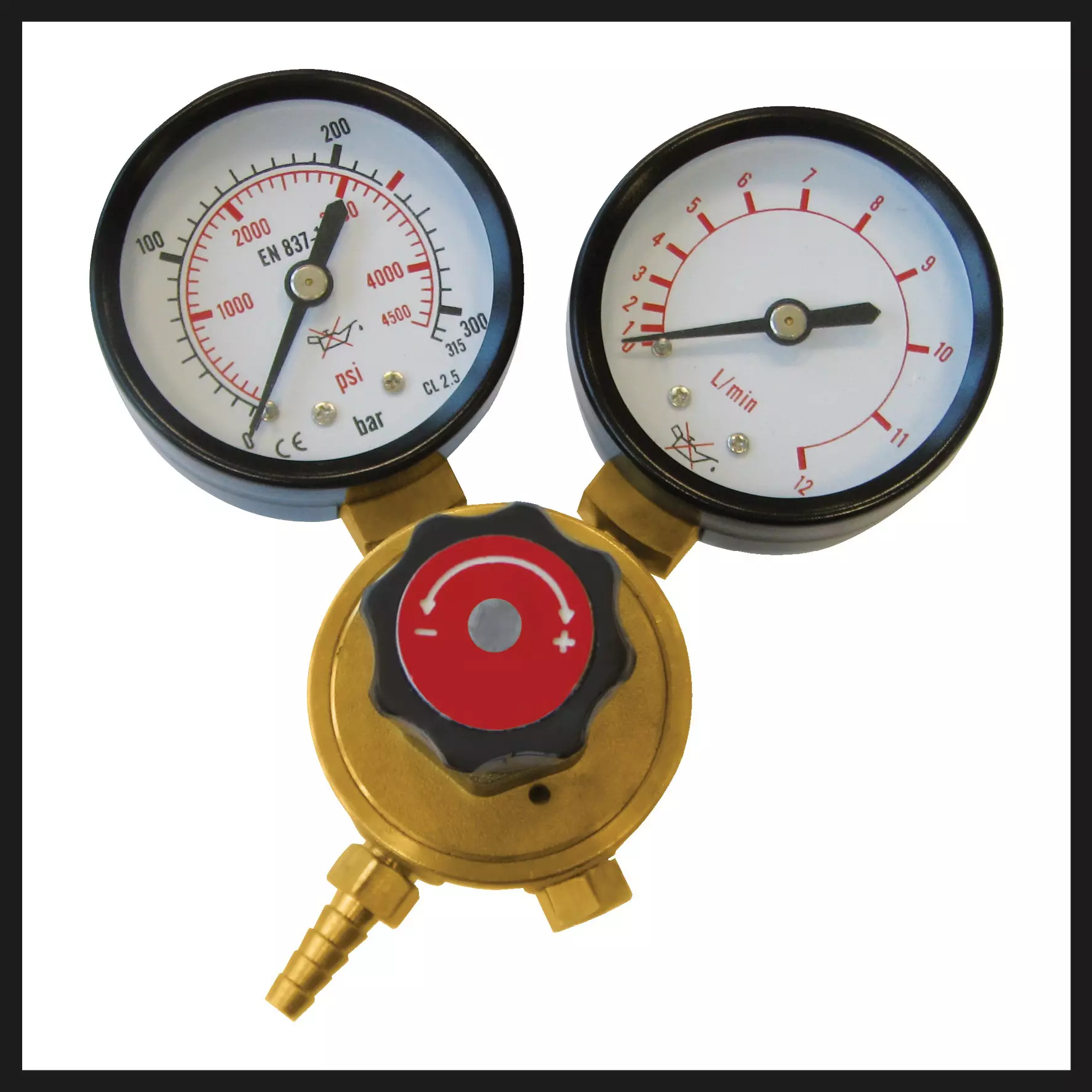

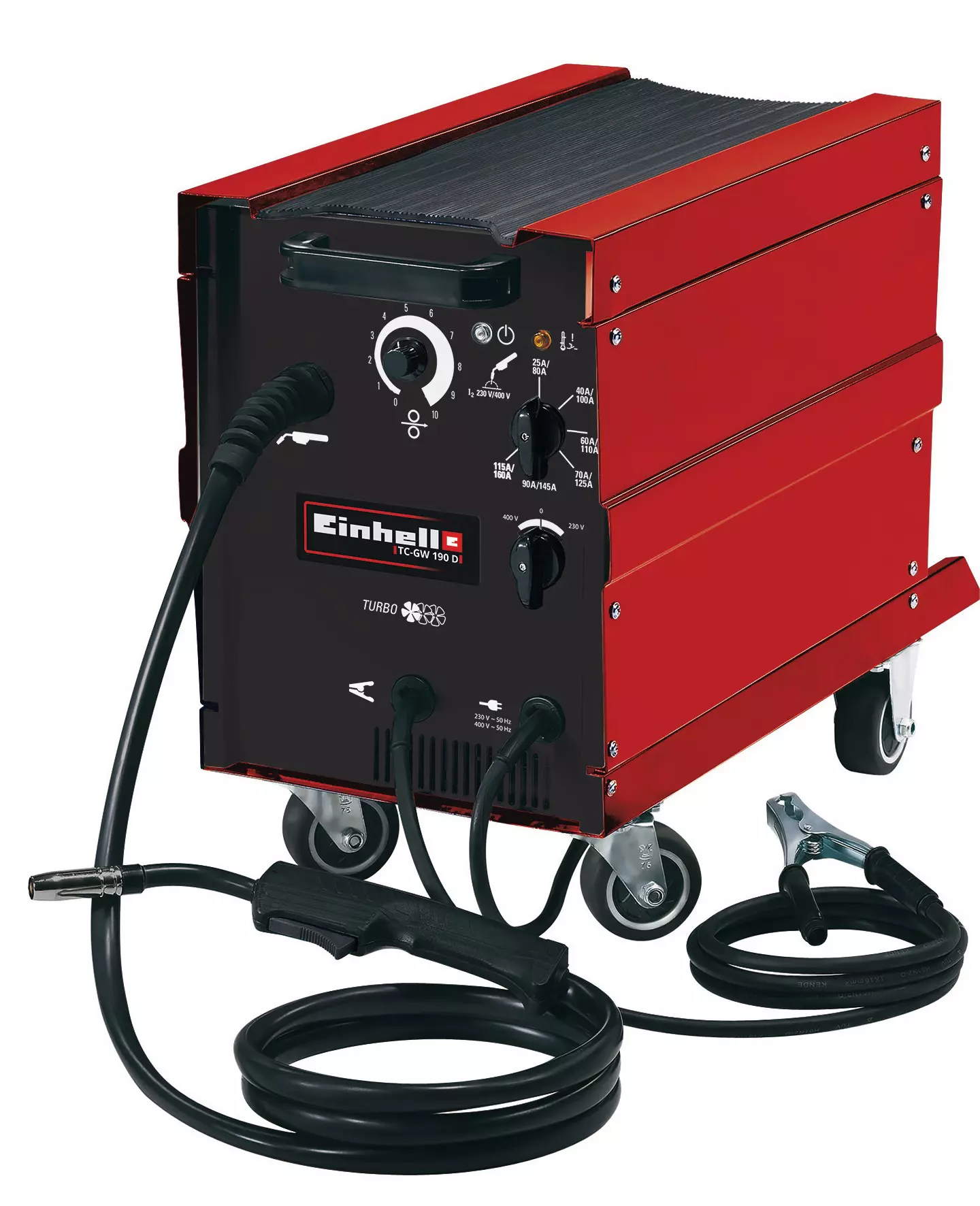

The Einhell TC-GW 190 D shielding gas welder is designed for joining together metal elements and structures on a permanent basis using the MAG method. Thanks to its comprehensive features there is no end to its potential uses. The welder has a fan cooling system, so it can be used for long work sessions, for example, and a thermal overload cut-out with pilot lamp provide the necessary safety. For fastening the gas cylinders securely a chain is included. There are twelve settings for the welding current, from 25 to 160 A. Both the hose package (length 1.4 meters) with welding torch and the earth cable with earth terminal are permanently connected to the welder. The mobile shielding gas welder is easy to transport. For smooth operation the shielding gas welder has an infinitely adjustable 2-roller wire feed (diameter of 0.6 mm to 1 mm). The product is supplied with a shielding gas hose, a pressure reducer with two pressure gauges, an adapter cable and a welding screen.
|Mains supply||230/400 V | 50 Hz|
|Welding current||25 A - 160 A|
|Welding current regulation||6 settings|
|No-load voltage||36 V|
|Welding wire diameter||0.6 mm - 1 mm|
|Welding wire drum||5 kg|
|Length of hose package||1.4 m|
