Cutting discs
Diamond.Cutt.Dsic 180x25,4mm
Item no.:49795850EAN: 4009317958505
einhell-by-kwb-cutting-discs-49795850-productimage-001
einhell-by-kwb-cutting-discs-49795850-example_usage-001
einhell-by-kwb-cutting-discs-49795850-productimage-001
einhell-by-kwb-cutting-discs-49795850-example_usage-001
Cutting discs

Diamond.Cutt.Dsic 180x25,4mm

Item no.: 49795850 EAN: 4009317958505

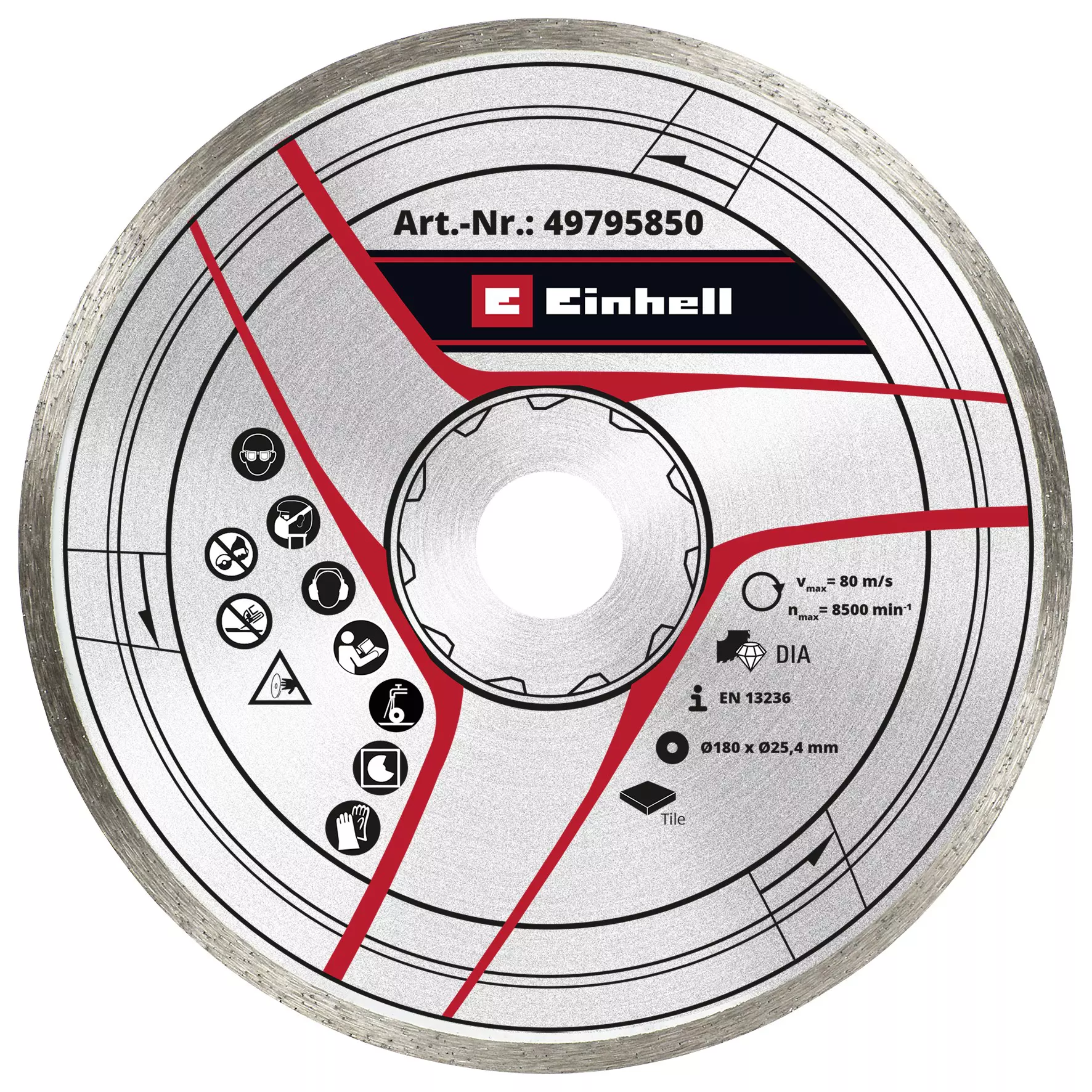

  • Original Einhell diamond cutting disc for tile cutting machines
  • Accessory for a wide range of tile cutting machines
  • Suitable for cutting tiles, porcelain stoneware and travertine
  • Diamond scattered surface for fine cut edges
  • Closed diamond scattered edge
  • 4 mm large cutting depth
  • 2.4 mm thin cutting disc for precise cuts
  • Dimensions Ø 180 and 25.4 mm bore
  • Maximum revs per minute: 8,500 min^-1
  • Can be used with a circumferential speed of 80 m/s
See more information
Show less information
einhell-by-kwb-cutting-discs-49795850-productimage-001
Article description

The Original Einhell 180 x 25.4 mm diamond cutting disc is a practical tile cutting accessory for high cutting performance in tiles, porcelain stoneware or travertine. It fits almost all commercially available tile cutting machines with a circumferential speed of 80 m/s and a maximum rotational speed of 8,500 min^-1. The diamond cutting disc has a closed diamond-scattered cutting edge. The diamond scattered surface enables fine cutting edges. The outer diameter is 180 mm and the bore 25.4 mm. With a minimal disc thickness of 2.4 mm and a large cutting depth of 4.0 mm, the cutting disc ensures precise cutting performance.

Technical details

Cutting surface depth4 mm
Disc diameter180 mm
Disc thickness2.4 mm
Drilling diameter25.4 mm
